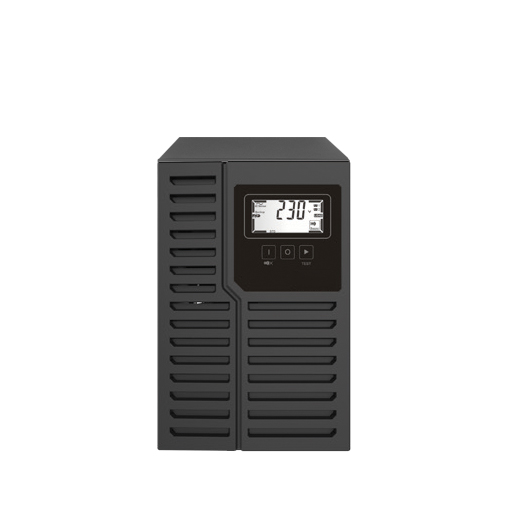

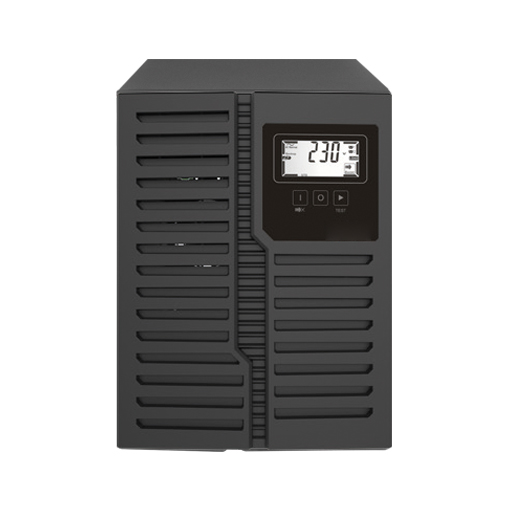

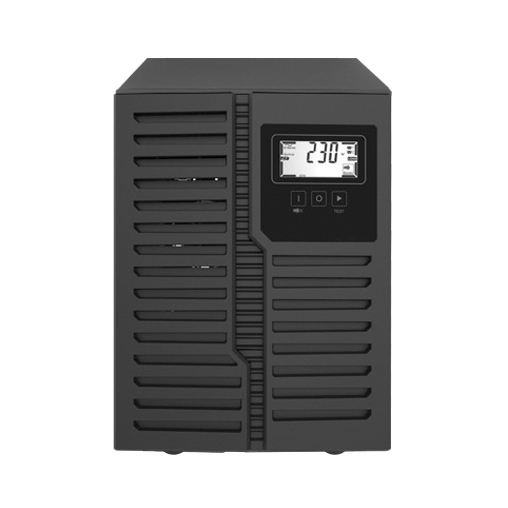

AR SMART Tower
IMPROVED BATTERY LIFE
1000VA ~ 3000VA
The AR SMART Tower offering premium quality in its simplest format and perfect for POS, small network applications and IT equipment. With its advanced technology, battery life expectancy is maximised whilst delivering exceptional system efficiency and performance.
Resources:
Features
- Online Double-Conversion technology (VFI) from 1000VA to 3000VA with a power factor 0.9.
- Easy installation.
- Low running costs with selectable high-efficiency (VFI)and ECO modes.
- User-friendly downloadable monitoring software supporting the main OS providing monitoring functions, diagnostics and automatic controlled shutdown of connected loads.
- High overload capacity.
- Constant voltage constant frequency (CVCF) output mode offering maximum protection to sensitive loads.
- Wide input voltage and frequency ranges reducing battery switching resulting in maximum service life.
- Configurable battery reserve percentage from 3% to 100% of available capacity.
- Cold start.
- Firmware can be upgraded easily to implement new features.
- EPO or On/Off with remote option.
- RS232, USB and mini slot to accept optional communication cards.
- Supplied with input and output power cables
Accessories
Communication cards
Remote monitoring and management of UPS systems and other safety components.
DY801 Mini
Mini SNMP Card.
RS485 Mini
Mini RS485 card.
CH250 Plus
250W adjustable charger
Internal SNMP card
Net Agent 9 internal (CY-504 series).
Internal SNMP card 3P
Net Agent 9 Internal 3 port (BY-506B series).
DCE-C
Programmable card with dry contacts with client software included.
RS232 Card
Internal RS232 card.
RS485 Card
Card for data exchange via RS-485 via ModBus protocol.
External bypass
The External by-pass allow safe maintenance without shutdown the load
Rack-BP_PDU-16 (RacPDU-216G)
External manual bypass with additional sockets (6 x 10A IEC and 2 x 16A IEC)
Isolation transformers
In a UPS system, isolation transformers transfer AC current to connected equipment while isolating them from the power source. This protects against electric shock and suppresses harmful electrical noise.
CHG250W
External charger 250W 36-72Vdc selectable - Dimensions 252x94x196mm - Weight 2,9Kg.
